Excavator Parts in Portland - Excavator machines are vital for finishing jobs on budget and on time. They are far more efficient compared to manual labor and can move heavy loads of dirt in mere minutes. Besides being utilized in construction, this equipment is popular in a variety of industries including bridge and road work, agriculture and landscaping. Also called diggers, 360-degree excavators and mechanical shovels, tracked models are sometimes referred to as trackhoes. Excavators can be equipped with numerous attachments to facilitate a range of jobs including grading and landscaping, demolition with a cutter, breaker and hydraulic saw attachments, material handling, river dredging, forestry, construction, open-pit mining, regular mining, driving piles when working with a pile driver, digging holes, foundations and trenches, snow removal with snowplow and snowblower attachments, drilling for rock blasting and footings with hydraulic auger attachment or drill, mulching for forestry and more.

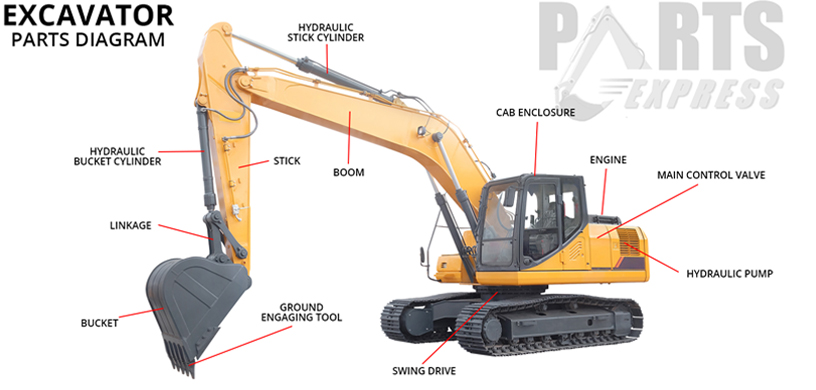

An excavator is a type of heavy construction equipment that is comprised of specific parts. The dipper, boom, cab and bucket are situated on top of a rotating platform called the house. The house is situated on top of an undercarriage that has tracks or wheels. Excavators have evolved from steam shovels of yesteryear. The hydraulic excavating models rely on hydraulic fluid to finish all movement and functions. The linear actuation on the hydraulic cylinders makes them differ from cable-operated excavators that rely on winches or steel ropes.
Excavator Models
Hydraulic excavators come in a variety of different models and sizes. Tiny and compact models weigh approximately 2k lbs. while the largest models weigh in around 2m lbs.
Three hydraulic pumps are utilized by modern hydraulic models instead of relying on mechanical drivetrain configurations. Two pumps deliver high-pressure oil for the accessories, swing motor, track motors and arms. A low-pressure third pump delivers power to pilot the spool valves. This design offers less required physical effort for operating the controls. The three excavator pumps typically consist of a gear pump and two variable displacement piston pumps. These three pumps can be found in the excavator in numerous configurations depending on different manufacturer models.
The House and the Undercarriage
The house and the undercarriage make up the two main portions of the machine. The undercarriage is comprised of the tracks, track frame, the gears and the hydraulic motor that operates the blade tracks. The house features the engine, hydraulic oil tanks fuel, counterweight and the operator cab. A center pin connects the undercarriage to the house. A hydraulic swivel located at the pin axis supplies high-pressure oils to the hydraulic motors’ tracks. This setup enables the machine to traverse 360 degrees freely.
The house is attached to the main boom and various configurations are available. The most common type of booms are the mono booms. This type features zero movement besides straight up and down. The knuckle boom enables the machine to move right and left in line. There is a hinge option located at the booms’ base to let it pivot up to 180 degrees independently to the house, usually on available on compact excavators. Triple articulated booms are also on the market.
A dipper arm is attached to the end of the boom. This arm creates the necessary digging force to drag the bucket through the ground. The stick length is optional depending on if reach or breakout power is needed. Shorter stick models are often utilized for breakout power jobs while longer stick models are used to complete extensive reach situations. At the end of the stick, the bucket is attached. A mud bucket refers to a wide bucket that has a straight cutting edge for cleanup applications and leveling and where teeth are not required. General purpose buckets are usually stronger and smaller with hardened teeth and side cutters to break up rocks and difficult ground. There are different buckets available in numerous sizes for a variety of applications. Numerous attachments can be used for ripping, lifting, cutting, boring, crushing, and more.
Prior to the ‘90s, all excavating equipment came with a conventional counterweight that was suspended off of the back of the machine. This was in place to add more lifting capacity and digging force. As one can imagine, this became cumbersome when working within confined spaces. The counterweight of modern machines today is designed to stay in the width of the tracks making it much safer and more user-friendly within confined spaces.
The SAE and the ISO are the two types of control configuration used to operate the boom and the bucket. These types of control configuration disperse the four top digging controls between two different x-y joysticks, enabling an experienced operator to have simultaneous control of all four functions. Certain excavators have switches to allow the operator to decide on which configuration they want to use during operation.
Hydraulic excavator jobs have surpassed bucket and excavation tasks. Many attachments including an auger, a grapple or a breaker have become common hydraulic powered attachments. Some models come with a quick coupler feature to increase efficiency while simplifying the attachment mounting process. Excavators commonly work alongside bulldozers and loaders. The majority of medium and compact sized wheeled models have a dozer blade or a backfill blade. This horizontal blade attaches to the undercarriage. It is used for pushing and leveling material back into a hole.
8 Main Excavator Types
• Long Reach
• Backhoe
• Suction
• Steam Shovel
• Bucket Wheel
• Skid Steer
• Dragline
• Crawler
Steam Shovel
Steam shovels are one of the original types of excavators. They utilized steam energy back in the day, while current models rely on diesel or electric motors. Steam shovels are similar to backhoes with the bucket or shovel facing away from the machine instead of facing it. This design allows the operator to push dirt away from the unit instead of pulling the earth towards it. Steam shovels are used for digging around objects that may interfere with a typical backhoe.
Backhoe
One of the most well-known types of excavators is backhoes. Backhoes contain a large bucket that extends from a boom or an arm and a wheeled track base. The operator can scoop earth toward the machine as the design has the bucket facing the operator’s cab. These machines come in multiple sizes including compact residential models suitable for backyard applications up to heavy-duty versions used in bridge building and dredging waterways. The smaller models enable operators to work in tiny spaces; however, this translates to approximately a 200-degree swiveling capacity for digging close to the machine.
Dragline Excavator
Dragline excavators are designed similarly to a backhoe and include numerous lines and cables to support the bucket pulling motion. The dragline allows operators to reach farther and dig deeper in comparison to a regular backhoe. The boom and cables allow users to work over unstable or wet ground and where a traditional backhoe would not work.
Skid Steer Excavators
Skid steers have buckets and booms that face away from the operator. This design allows attachments to reach over the cab as opposed to around it. This design makes skid steers useful for negotiating tight turns and narrow locations. These machines often complete residential jobs such a digging pools, site cleaning and working in limited surroundings while removing debris.
Suction Excavator
Resembling a modern dump truck, these special excavators enable operators to use a large hose and vacuum technology to suck rocks and earth out of the ground. The material is moved back to the truck. This machine makes it safer to dig around underground pipes and equipment compared to regular backhoes.
Crawler Excavators
Crawlers run on two tracks and not wheels. They are popular in the mining and construction industries. Crawlers are also known as compact excavators. They lift heavy debris and soil by using hydraulic power components. The chain wheel configuration allows the machine to traverse down hills with less risk, making them an ideal candidate for hilly locations and tricky terrain. Crawlers are slower in speed compared to other models but offer superior balance, flexibility and stability.
Long Reach Excavators
The long reach model features longer arm and boom options. They are ideal for hard-to-reach areas. This machine offers over one hundred feet of horizontal reach. These machines are often used for demolition in applications working over a body of water. Numerous attachments can be attached to the arm to complete jobs including shearing, crushing and cutting.
Bucket Wheel Excavator
These machines consist of a large front wheel that has built-in buckets and shovels. Items such as dirt and rocks become scooped up in the bucket as the wheel rotates. Materials are transferred onto a conveyor belt that makes up a portion of the machine. The belt transports the material into a bin that depending on the model, could be a part of the machine or separate.
